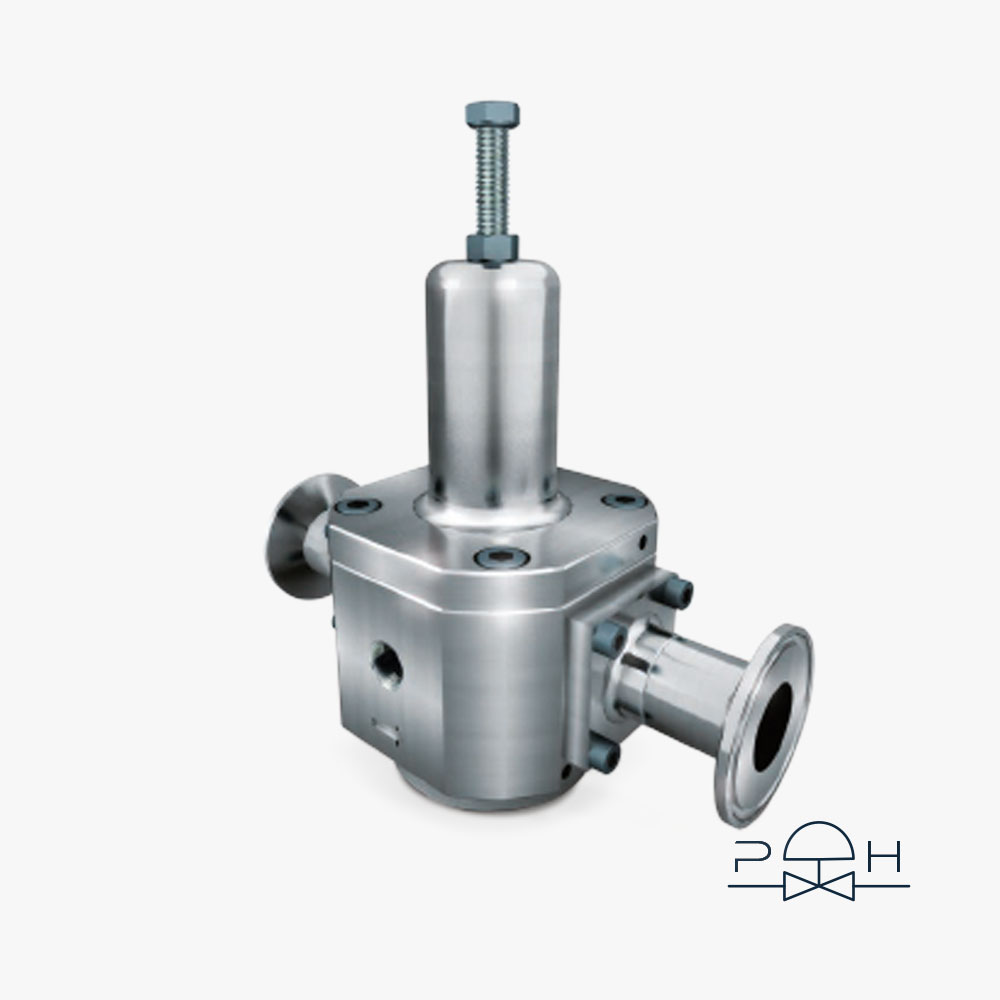

PH-TCR60-PHARMA-R

Cost Options:

• Bracket for wall mounting
• Over-ported to 3/8”
• Pressure In up to 70 bar

No-cost options:

• Self-relieving or not relieving execution
• Pressure out 0.2 – 3 bar, 0.5 – 8 bar or 1 -17.5 bar
• NPT or BSPP threaded ports
• 5, 25 or 50 micron filtration rate
• Elastomers of HNBR, EPDM, FKM or silicon
• ATEX or standard execution

Pressure Regulators for LIQUIDS and GASES made of stainless steel 316 L, designed and manufactured for Pharmaceutical industries and Biotechnological applications. Control system with membrane convolved for best stability and precision. Balanced poppet-valve (shutter) to keep outlet pressure almost constant and independent from fluctuation of inlet pressure.

Design for CIP and SIP cycles.

Self-relieving execution for exhausting over-pressure, just for compress air service. Outlet pressure range till to 17.2 bar (250 psi). Adjusting by screw hex head. Special version (i.e. without self relieving for gases and liquid) on request. The pressure gauge can be mounted on both sides.

Important: Upstream filter is strictly recommended.

FEATURES

• Material: Stainless Steel
• Particular attention to the low level of roughness of surfaces, to grant high standard of cleaning;
• Compatible for use in aggressive environment;
• Suitable for extreme temperatures (-60°C), critical environments, hazardous applications;
• Suitable to be cleaned and sanitised by the most common processes;
