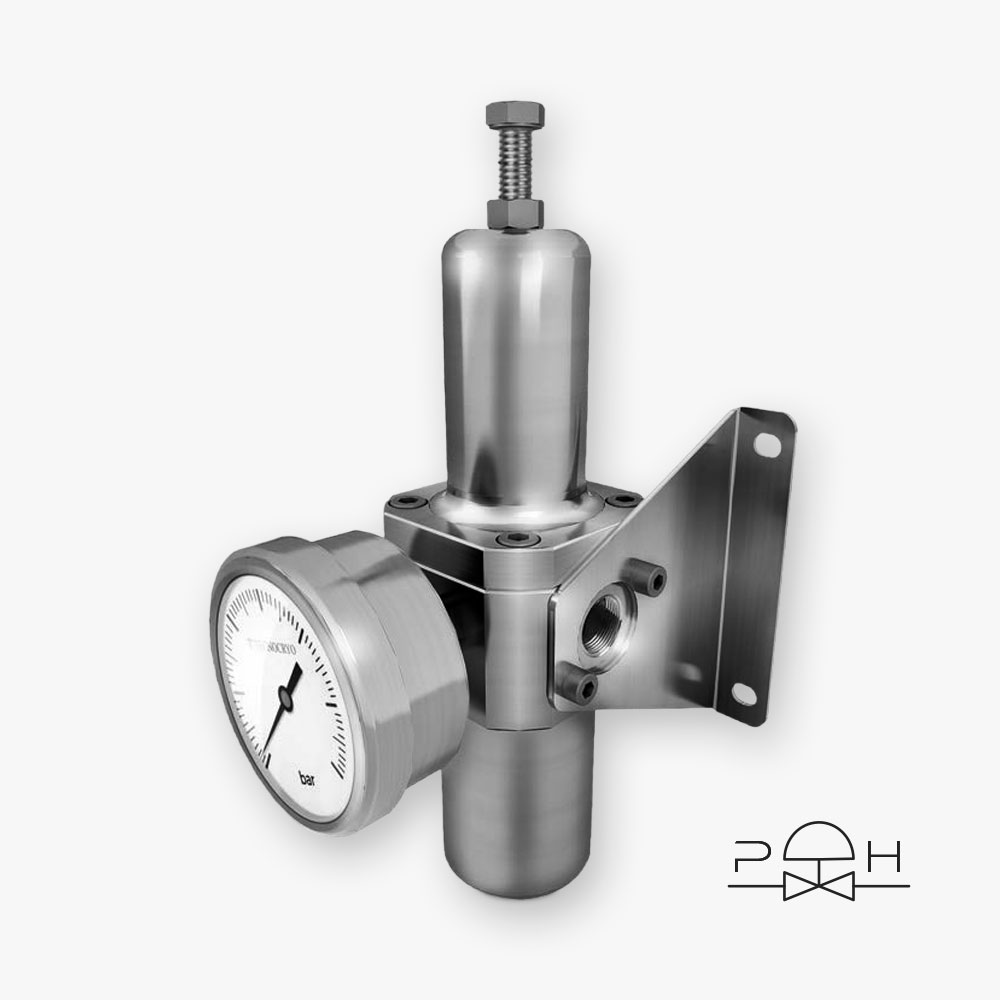

PH-TCR60-FR

Cost Options:

• Bracket for wall mounting
• Over-ported to 3/8”
• Pressure In up to 70 bar

No-cost options:

• Self-relieving or not relieving execution
• Pressure out 0.2 – 3 bar, 0.5 – 8 bar or 1 -17.5 bar
• NPT or BSPP threaded ports
• 5, 25 or 50 micron filtration rate
• Elastomers of HNBR, EPDM, FKM or silicon
• ATEX or standard execution

Filter/regulators made of stainless steel 316L, designed and manufactured for heavy-duty applications. Control system with convolved diaphragm for the best stability and precision. Balanced poppet-valve (shutter), to keep the outlet pressure almost constant and independent from fluctuation of inlet pressure. Self-relieving execution for exhausting over-pressure, just for compressed air application. Outlet pressure range till to 50 bar (725 psi), adjustable by screw with hexagonal head. Connections for outlet pressure gauge on both the sides.

Special version (without self relieving for gases and water) on request.

FEATURES

• Material: Stainless Steel
• Particular attention to the low level of roughness of surfaces, to grant high standard of cleaning;
• Compatible for use in aggressive environment;
• Suitable for extreme temperatures (-60°C), critical environments, hazardous applications;
• Suitable to be cleaned and sanitised by the most common processes;

PH-TCR60-FR Data Sheet
